Industrial Coated Synchronous Belts | 50+ Series Types | OEM Solutions

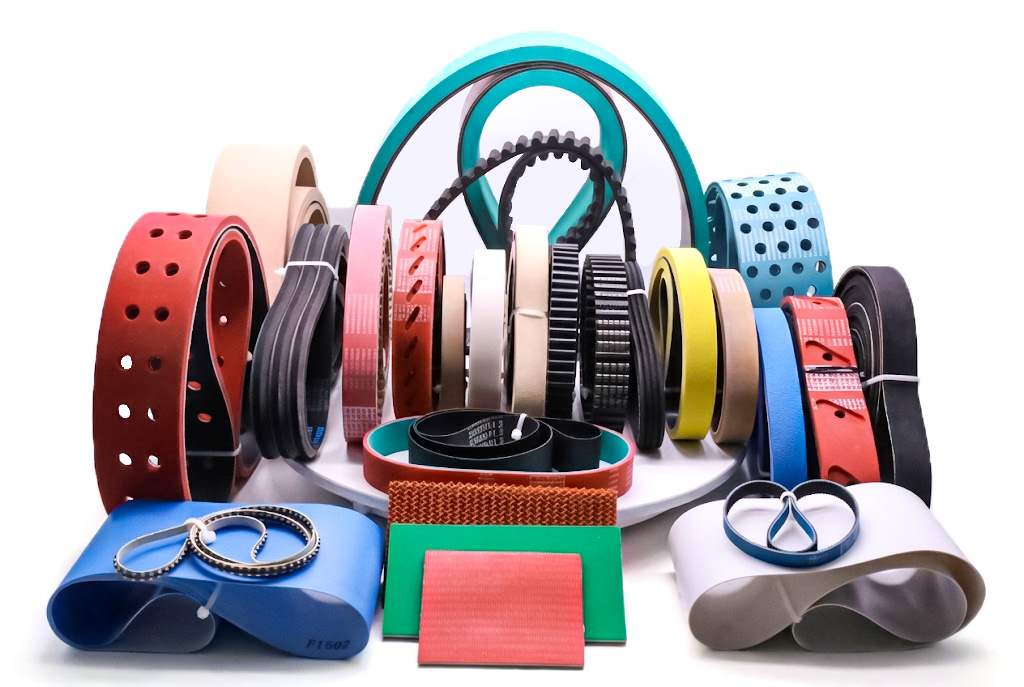

Rubber Coated Timing Belts Manufacturer
23+ years manufacturer.
6000+ molds.
T/AT/STD/RPP/HTD/GT series with rubber, silicone, EPDM or fluororubber coatings.
FDA-approved materials available.
Top 3 in China, serving 50+ countries.
Precision Synchronization
High precision timing with zero slippage. Accurate shaft positioning for industrial machinery.
High Torque Capacity
Handles high power transmission with minimal heat generation. Ideal for heavy-duty applications.
Silent Operation
RPP series delivers quiet performance. Reduces noise in sensitive environments.
Diverse Materials
EPDM (food-grade), Silicone (180°C), Fluororubber (chemical resistant).
Custom Solutions
6000+ molds inventory. OEM/ODM capabilities. Low MOQ starting from 10 pcs.
Global Reliability
50+ countries shipping. 10 branches. Top 3 manufacturer since 2003.

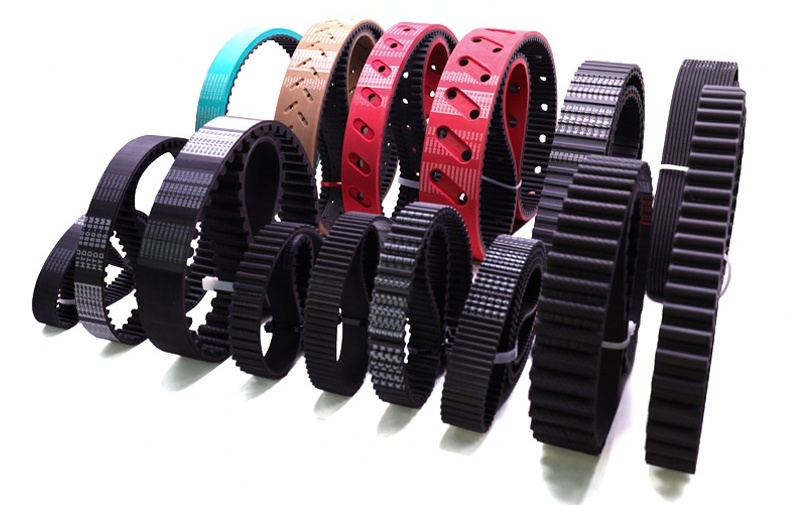

What is Rubber Coated Timing Belt?
A rubber coated timing belt features a protective rubber, silicone, EPDM or fluororubber coating bonded to the tooth surface. Unlike standard timing belts, coated belts offer superior wear resistance, temperature tolerance (up to 180°C), chemical protection, and anti-slip performance.
- Enhanced wear resistance — extended service life
- Temperature resistance — EPDM up to 180°C, silicone options
- Chemical and oil resistance — fluororubber coating available
- Food-grade compliance — FDA-approved materials
- Reduced noise and vibration
- Anti-slip performance
- Custom surface treatments — perforation, slots, sponge
Model Coding System
Our coated timing belts follow a standardized model coding system.Example model: 630-T10-10N/AR-20L15/4×18-M15| Field | Example | Definition | Notes |
|---|---|---|---|
| 1 | 630 | Pitch Line Length (mm) | Select based on mold list |
| 2 | T10 | Tooth Profile/Pitch | Select profile and pitch |
| 3 | 10 | Total Thickness (mm) | Customization range: 3-28 mm |
| 4 | N | Material | See material options below |
| 5 | A | Hardness | See hardness options |
| 6 | R | Color | See color options |
| 7 | 20 | Number of Holes | Confirm based on drawings |
| 8 | L15 | Direction/Angle | L=left, R=right, S=straight, C=tapered |
| 9 | 4 | Through Hole Diameter (mm) | 4/6/8/10/12 mm available |
| 10 | 18 | Countersink Depth (mm) | Width same as through hole |
| 11 | M15 | Gear Milling Position/Width | M=center, S=double-sided |
Configuration Options
| Category | Code | Description |
|---|---|---|
| Material | N | High-Friction Rubber |
| Material | C | High-Hardness Rubber |
| Material | D | Oil-resistant Rubber |
| Material | H | Silicone |
| Material | F | Fluororubber |
| Material | E | EPDM Rubber |
| Material | AS | Anti-static Rubber |
| Material | EA | Multifunctional Rubber |
| Material | X | Fiber-reinforced Rubber |
| Material | Q | Traction Rubber |
| Hardness | E | Shore 38° |
| Hardness | A | Shore 43° |
| Hardness | B | Shore 50° |
| Hardness | C | Shore 70° |
| Hardness | D | Shore 60° |
| Hardness | F | Shore 80° |
| Color | W | White |
| Color | G | Green |
| Color | R | Red |
| Color | H | Grey |
| Color | L | Blue |
| Color | B | Black |
| Color | Y | Brown |
| Color | P | Purple |
| Color | Other | Custom Pantone |
| Direction | L | Left Countersunk Hole |
| Direction | R | Right Counterbore |
| Direction | S | Straight Hole |
| Direction | C | Tapered Hole |
| Angle | 15/25/30/60/90 | Custom Angle Degrees |
| Through Hole | 4/6/8/10/12 | Diameter in mm |
| Milling | M | Center Milling |
| Milling | S | Double-sided Milling |
| Milling | BM | Back Centered Slot |
| Milling | BS | Back Both Sides |
Coating Types
Coating Types & Material Options| Coating Material | Features | Applications |
|---|---|---|
| High-Friction Rubber (N) | Enhanced grip, anti-slip | Power transmission requiring extra traction |
| High-Hardness Rubber (C) | Wear-resistant, impact-resistant | Heavy-duty industrial applications |
| Oil-resistant Rubber (D) | Superior oil resistance | Hydraulic systems, oil environments |
| Silicone (H) | Temp. range -60°C to 180°C | High/low temperature environments |
| Fluororubber (F) | Chemical resistance | Chemical, pharmaceutical industries |
| EPDM Rubber (E) | Ozone/weather resistance | Outdoor, harsh weather conditions |
| Anti-static Rubber (AS) | ESD protection | Electronics, semiconductor |
| FDA Materials | Food-grade certified | Food processing, packaging |
Available Belt Series for Coating
| Series Type | Models | Pitch (mm) |
|---|---|---|
| Imperial Series | MXL, XXL, XL, L, H, XH, XXH | 2.032-5.080 |
| Metric 3M Series | 3M | 3.000 |
| Metric 5M Series | 5M | 5.000 |
| Metric 8M Series | 8M | 8.000 |
| Metric 14M Series | 14M | 14.000 |
| Metric 20M Series | 20M | 20.000 |
| S Series | S2M, S3M, S4.5M, S5M, S8M, S14M | 2.000-14.000 |
| RPP Series | RPP3M, RPP5M, RPP8M, RPP14M | 3.000-14.000 |
| T Series | T2.5, T5, T10 | 2.500-10.000 |
| AT Series | AT5, AT10, AT20 | 5.000-20.000 |
| GT Series | 2GT, 3GT, 5GT, 8YU | 2.000-8.000 |
| D Series | DXL, DL, DH, D5M, D8M, D14M | 2.032-14.000 |
Why Choose Sables as Your Belt Supplier?
When selecting a belt supplier, consider these key advantages that set Sables apart:
6000+ Molds Inventory
Our extensive mold inventory enables rapid customization with flexible MOQ starting from 10 pcs. Find your perfect match or create custom solutions.
ISO9001:2015 Certified Production
Every belt undergoes rigorous 4-step quality assurance. Our defective rate stays below 0.02%, backed by 12-month quality guarantee on standard products.
Global Service Network
Serve 50+ countries with 10 branches in China. Fast response time, local support, and reliable logistics for international customers.
OEM/ODM Capabilities
Full customization support: materials, sizes, pitches, colors, and branding. Sample development in 2-4 weeks for custom orders.
FDA-Approved Materials
Food-grade options available with full compliance documentation. EPDM, Silicone, Fluororubber materials for demanding environments.
Technical Consultation
Engineering team with 45+ years combined experience. Share your specifications and get expert recommendations for optimal belt selection.
Flexible MOQ
Standard products: 10 pcs minimum. Custom orders: 50 pcs minimum. Sample orders available for qualification testing.

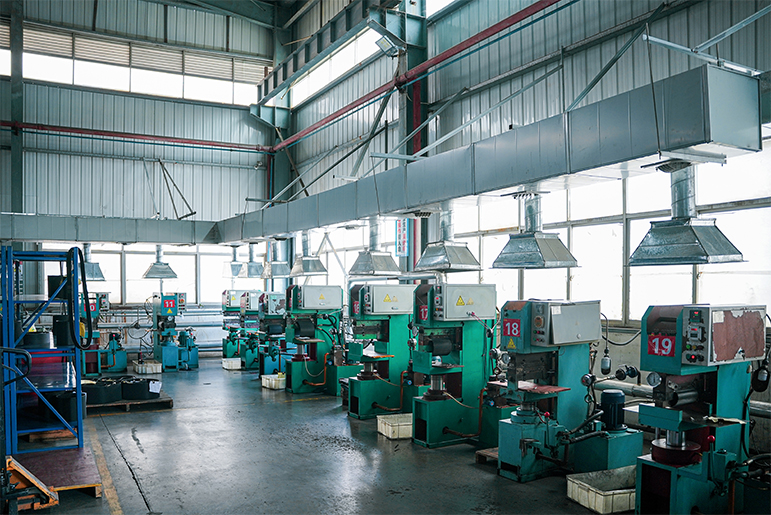

Our Technology & Manufacturing Expertise
Founded in 2003, Sables Belt has grown from a family workshop to one of China's Top 3 coated timing belt manufacturers. Our technical team includes industry veterans with 45+ years of experience, trained in Japan, having collaborated with international brands.
- Advanced rubber compounding and vulcanization
- Precision coating application technology
- Multi-layer reinforcement (steel cord, aramid, fiberglass)
- Custom surface treatments (perforation, slots, sponge backing)
- ISO9001:2015 certified manufacturing
- RoHS compliant materials available
- FDA-approved food-grade coatings
Mission
To deliver reliable, well-matched, and sustainable transmission solutions for industrial equipment.
Vision
To become a globally trusted benchmark brand in China’s industrial transmission industry.

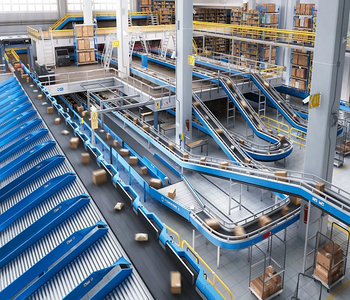

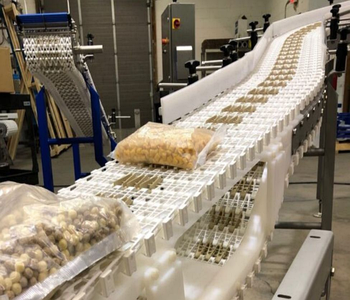

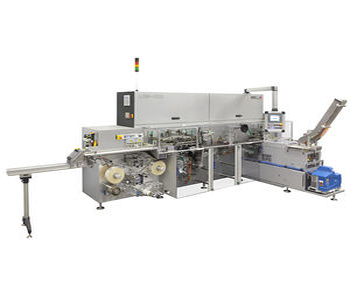

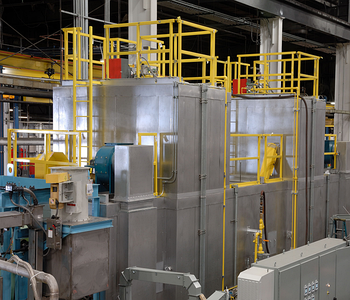

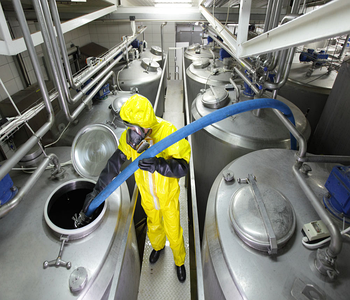

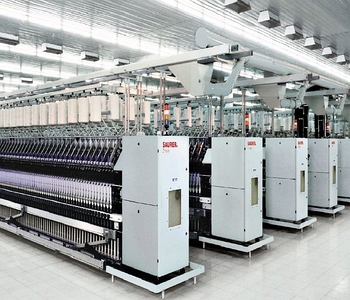

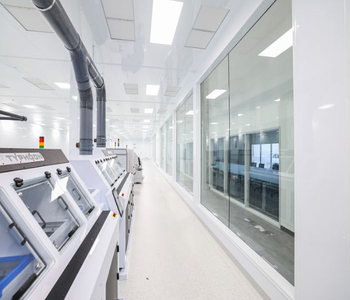

Coated Timing Belt Applications Across Industries
From food processing requiring FDA-approved materials to industrial environments demanding chemical resistance, our coated timing belts deliver reliable performance.
Quality Commitment
Reliable Quality, Backed by Performance
Quality Guarantee
- Standard products: 12-month quality guarantee from delivery date
- Custom/OEM products: Quality verification before shipment
- Defective rate: <0.02%
- Free replacement for manufacturing defectsSupport
- Email response within 24 hours
- WhatsApp/Skype for real-time communication
- Technical hotline for urgent inquiriesWarranty Scope
- Manufacturing defects: Free replacement
- Installation support: Technical guidance available
- Spare parts: Long-term availability guaranteed
Certifications & Recognition
Sables follows strict manufacturing and quality control standards, serving demanding industrial applications with long-term stability.
OEM & Custom Solutions
Customization Capabilities:
- Custom sizes, pitches, and widths
- Materials: EPDM, Silicone (180°C), Fluororubber, Neoprene
- Reinforcement: Steel cord, Kevlar/Aramid, Fiberglass
- Surface treatments: Perforation, slots, special profiles, rubber coating
- Branding and packaging options
MOQ:
- Standard: 10 pcs per model
- Custom: 50 pcs minimum
- Samples available
How We Work Together
From Inquiry to Delivery — Your Project, Our Priority
Process 01
Requirements Analysis
Share your specifications
Process 02
Technical Consultation
Engineers recommend materials
Process 03
Sample Development
2-4 weeks for custom samples
Process 04
Quality Verification
Full inspection before mass production
Process 05
Production & Delivery
Flexible lead time
What Our Clients Say
“We needed custom S5M timing belts with FDA-approved materials for our food processing equipment. Sables Belt’s R&D team developed the perfect solution within 4 weeks. Their certifications helped us meet compliance requirements.”
Engineering Manager
Food Equipment OEM, Japan
“We distribute Sables Belt across Europe. Quality is consistent, territorial agreements respected. 10 branches in China mean impressive response time. 5 years of partnership and counting.”
Sales Director
Power Transmission Distributor,Germany
“The RPP 14M series is excellent — no belt failures in 18 months of continuous operation. Technical support optimized our transmission system, reducing maintenance costs by 40%.”
Factory Manager
Textile Machinery Plant, Vietnam
Contact Sables for Coated Timing Belt Solutions
If you need technical support, specification confirmation, or custom Coated Timing Belt solutions, feel free to contact Sables.
- Quick Contact Us
- Name
- *Phone
FAQs About Coated Timing Belts
- How do I choose between rubber and polyurethane (PU) timing belts?The choice depends heavily on your environment. PU belts offer high tensile strength and are ideal for cleanroom or food environments. Rubber belts, made from advanced neoprene or EPDM, excel in high-torque power transmission, ambient noise reduction, and higher temperature resilience. Sables' engineering team (45+ years combined experience) is available to analyze drawings and recommend cost-effective materials.
- Can I customize the width, pitch, or reinforcement of a timing belt?Yes, absolutely. Sables leverages an extensive inventory of 6,000+ molds to deliver fully custom rubber timing belts with precise tooth profiles (RPP, STD, HTD) and high-strength reinforcements (steel, fiberglass, Kevlar). Custom surface slots or perforations are supported with a flexible low MOQ starting from just 50 pcs to match your tailored equipment specifications.
- How long should a rubber timing belt last in industrial machinery?In standard industrial applications, high-quality rubber timing belts typically deliver a service life of 1-3 years. However, consistent reliability requires precision manufacturing. Backed by 23+ years of OEM expertise and ISO9001:2015 production, Sables maintains a strict 4-step quality assurance process to guarantee a defective rate below 0.02%, lowering your maintenance costs by up to 40%.
- What causes rubber timing belts to fail prematurely?Premature failure is usually caused by improper tension, severe environmental heat, or chemical exposure. Standard belts crack or strip teeth under harsh conditions. Sables provides custom rubber timing belts engineered with premium compounds like EPDM (up to 180°C) or fluororubber for superior chemical resistance, ensuring zero slippage and extended machinery uptime.
