High Synchronization Accuracy
Ensures stability during spinning and weaving processes.
Transmission Solutions for the Textile Industry
Home / Transmission Solutions for the Textile Industry

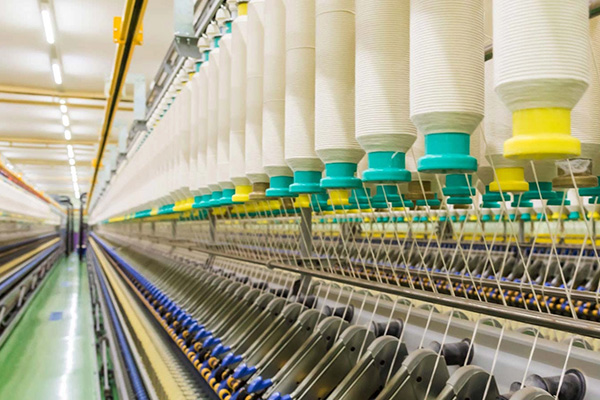

Typical Application Scenarios and Challenges in the Textile Industry
The textile industry is developing towards higher speeds and greater automation, and the transmission system is facing unprecedented and stringent challenges.
- High-speed continuous operation
- Multi-axis synchronization and high precision requirements
- Long-term operation, placing extremely high demands on belt life
- Extremely sensitive to tooth skipping, slippage, and elongation
- Some equipment involves length measurement and tension control, requiring high consistency of the flat belt
The Core Requirements for Synchronous Belts in Textile Machinery
High Speed and Fatigue Resistance
Suitable for 24/7 continuous operation.
Strong Dimensional Stability
Reduces errors caused by tensile deformation.
Low Risk of Tooth Skipping
Especially suitable for high-speed reciprocating and multi-axis drives.
Long-term Consistency
Batch stability, facilitating equipment maintenance.
Recommended Solutions for the Textile Industry

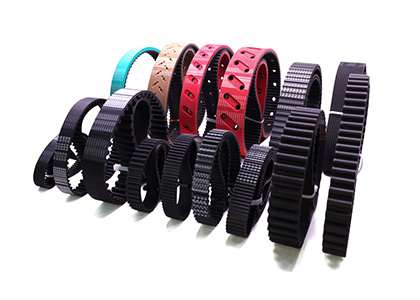

Synchronous Drive Solutions
Rubber Synchronous Belts (8M / 14M / HTD / Trapezoidal Tooth, etc.)
Suitable for:Carding machines, roving frames, spinning frames, and main drives of looms

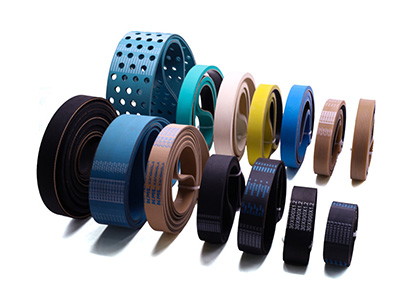

Length Measurement and Conveying Solutions
Seamless rubber flat transmission belt with high thickness consistency.
Suitable for:Speed measurement, yarn feeding, and conveying stations

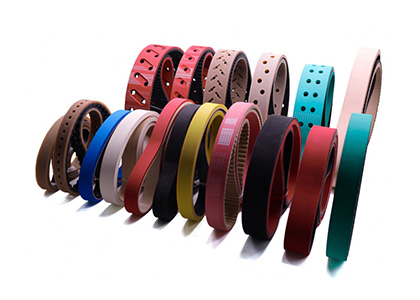

High-load and Special Structure Solutions
Reinforced synchronous belts and special formula belts.
Suitable for:high-speed, high-torque applications
Core Advantages of Sables in the Textile Industry
More than just a belt supplier, we are your drive system optimization experts. With years of experience in the textile machinery industry, we understand the impact of even the slightest vibration on yarn quality.
- Familiar with the structure and operating conditions of mainstream textile equipment.
- Compatible with mainstream domestic and international equipment brands.
- Synchronous belts and flat belts can be supplied simultaneously, providing enhanced system integration.
- Customized tooth profiles, circumferences, and structures are supported to adapt to existing equipment and retrofit requirements.
Textile Machinery & Belt Selection Reference
Quickly matches recommended Sables drive belt models based on equipment type.
| Equipment Type | Equipment Name | Brand | Made in | Belt Model | Note |
|---|---|---|---|---|---|
| Card Cleaning Equipment | Card Cleaning Machine | Hongda | China | 8M/5M/D8M/D5M | Main Drive |
| Roving Equipment | Roving Frame | Hongda | China | 8M | - |
| Drawing Frame Equipment | Drawing Frame | Hongda | China | H/L/8M/5M | - |
| Spinning Equipment | Spinning Frame | Hongda | China | 8M/14M | - |
| Winding Equipment | Automatic Winding Machine | Hongda | China | 3M/5M | High-Speed Operation |
| Looms | Rapier Loom | Bikcarle | China | 14M/XH/8M/5M | - |
| Looms | Projectile Loom | Sulzer | Switzerland | Standard Timing Belt | - |
| Water Jet Looms | Water Jet Loom | Haijia | China | 4 Synchronous Belts + Seamless Flat Belt | Length Measurement |
| Air Jet Looms | Air Jet Loom | Tsudakoma | Japan | 14M Timing Belt | - |
Product Updates Ongoing...
Application Cases & Customer Feedback
Detailed data and technological achievements based on real customer cases. Below is a complete solution for upgrading the synchronous belt of a spinning mill's ring spinning machine in Vietnam.
Machine Type
Ring Spinning Frames (~150 units)
Yarn Type
Mainly coarse counts
Working Condition
High temperature build-up & heavy lint/dust
Issue 01
Phase Drift During Long High-Speed Operation
- Before
- Gradual phase drift after long high-speed runs, causing drafting fluctuation and higher CV%
- Sables Response
- Sables endless seamless rubber timing belt, positive engagement drive (no slippage)
- Japanese-quality glass fiber tensile cords for low creep / low fatigue elongation and improved pitch stability
- Results with Data
- Phase drift significantly reduced; yarn evenness improved: CV% improved by0.3–0.8on average (depending on yarn and machine condition)
- Frequency of phase correction / parameter fine-tuning / unplanned maintenance interventions reduced by40–70%
- More stablelong-run performance and smaller quality fluctuations
Customer Feedback
More stable synchronization during long high-speed operation, with smaller quality fluctuations.
Issue 02

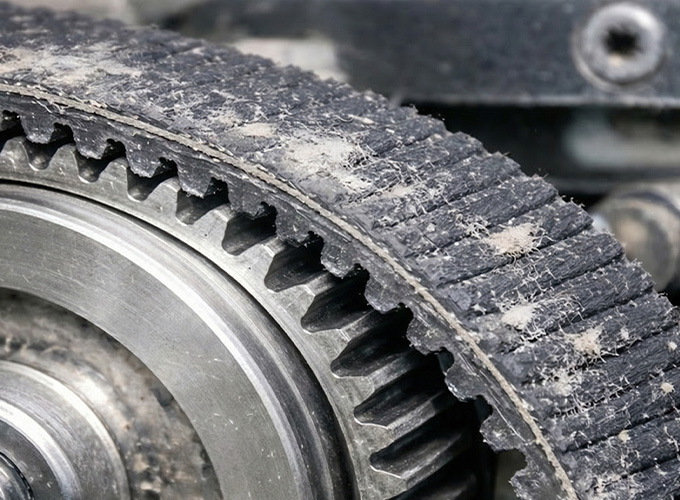

Wear, Noise, and Reduced Service Life Under Lint/Dust + Heat
- Before
- Lint/dust contamination accelerates engagement-zone wear and increases noise/squealing
- Heat build-up speeds up aging, leading to large life variation
- Typical belt life: 3–6 months
- Sables Response
- Optimized tooth fabric & tooth surface system to reduce engagement-zone wear
- Enhanced heat-aging compound and bonding system for high-temperature stability
- Optional anti-static version to reduce dust attraction and keep engagement cleaner
- Results with Data
- Complaints related to abnormal wear/tooth damage reduced by40–70%
- Noise/squealing incidencesignificantly lowered
- Average replacement interval extended by30–80%
- Service life extended from 3–6 months to8–12 months(more evident under harsher dust/heat)
Customer Feedback
Better wear resistance and more stable operation in hot, dusty textile environments, with much longer replacement intervals.
Frequently Asked Questions
- Can Sables help optimize existing transmission systems?Transmission optimization scheme
- How does Sables support OEM machine manufacturers?Sables support OEM machine manufacturers
- What are common belt problems in textile machines?Common belt problems in textile machines
Unsure Which Model is Right for Your Device?
Contact the Sables engineering team for selection advice tailored to your device.
